ISO Tank — Full Lifecycle Tracking

Products & Solutions

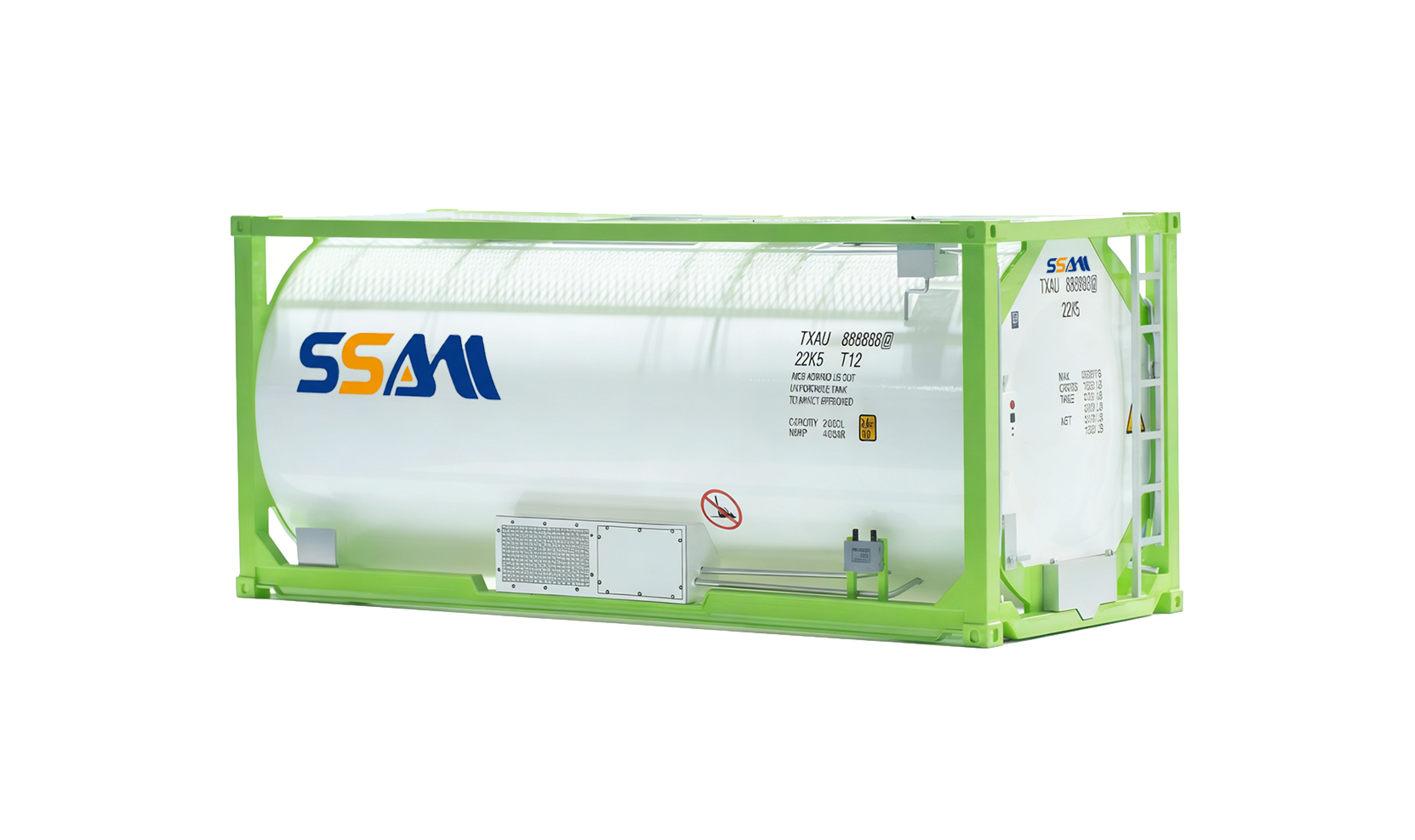

ISO Tank

Certified to international standards including IMDG, ADR, RID and DOT; supports a wide temperature range of -30 to 80°C; compatible with a four-in-one smart gauge for temperature, pressure, liquid level and position

Globally Certified

IMDG, ADR, RID, and DOT certified. Fully compliant with ISO standards for sea, road, and rail intermodal transport.
Modular Design

Quick, efficient installation and maintenance — no complex procedures required.
Full-Range Temperature Adaptability

Operates from -30 to 80°C, compatible with a wide variety of liquid materials.
Comprehensive Intelligent Monitoring

Optional 4-in-1 Intelligent Instrument (temperature, pressure, level, positioning) with 50,000-cycle data logging.

Product Specifications

SSAM Tank Series（19~26.6m³）
Series	Mainstream			Functional
Name	Standard Tank			ISO Refrigerated Tank			Widebody Refrigerated Tank
T-code	T11/T12/T14			T11/T12			T11/T12
Capacity (m³)	19	21/24/26		19	21/24		26.6
Tank M.A.W.P(Bar)	4			4			4
Tank Design Temperature(℃)	-40~130			-40~130			-40~130
Frame Dimensions(mm)	6058(L) x 2438(W) x 2438(H)		6058(L) x 2438(W) x 2591(H)	6058(L) x 2438(W) x 2438(H)		6058(L) × 2438(W)× 2591(H)	6058(L) × 2550(W) × 2700(H)
Vessel Material	SANS-1.4402/316L			SANS-1.4402/316L			SANS-1.4402/316L
Tank Type	TXF04		TXF02	TXF04		TXF03	TXF05
Configuration	Customizable			1. Refrigeration Unit 2. 4-in-1 Instrument (Temp/Pressure/Level/GPS) 3. CIP Cleaning System 4. Remote-controlled Gas Phase Valve 5. Baffle Plate			1. Refrigeration Unit 2. 4-in-1 Instrument (Temp/Pressure/Level/GPS) 3. CIP Cleaning System 4. Remote-controlled Gas Phase Valve 5. Baffle Plate
Max Gross(kg)	30,480		39,000	30,480		36,000	36,000
Type Approvals	IMDG, ADR/RID, US-DOT/CFR49, UIC(IRS 50592), TIR, CSC, TC Impact, ISO1496-3

Application Area

Primarily used for road, rail, and waterway transport of liquid cargoes — especially electrolyte — in the chemical industry.

Road Transport
Water Transport
Rail Transport
